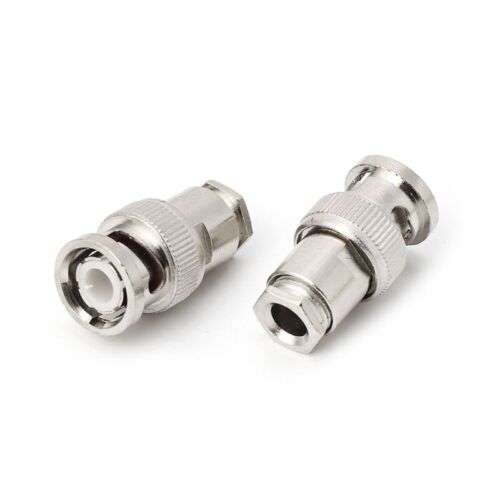

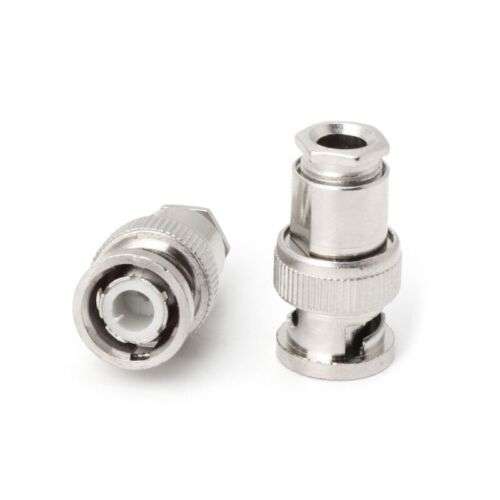

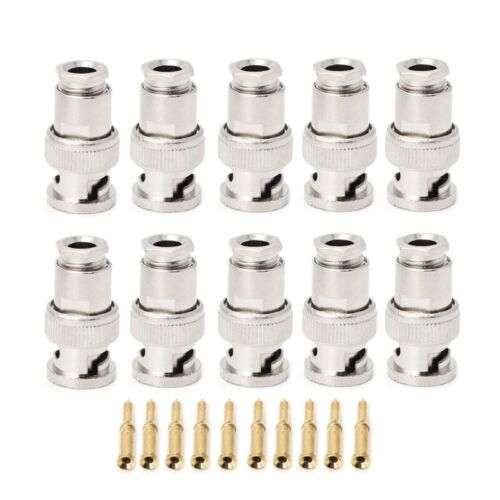

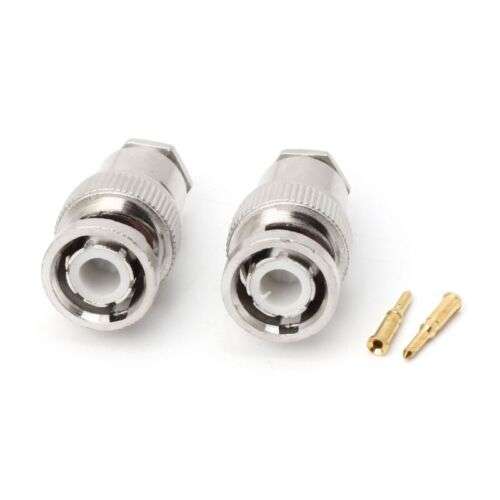

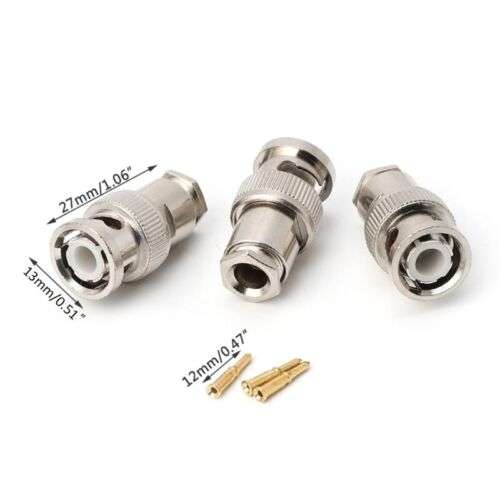

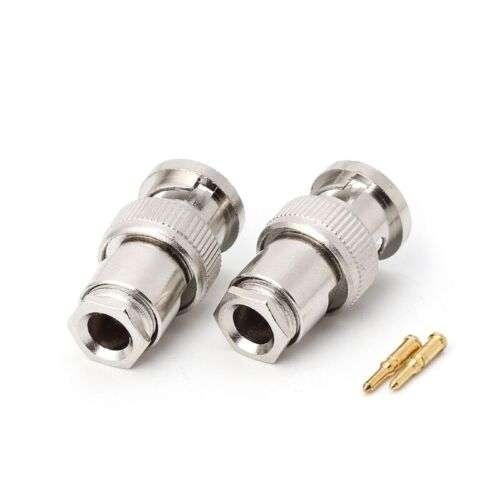

10PCS RG58 BNC Male Plug For CCTV Security Coax Coupler Video BNC Connector
Product Features:
- BNC male connector with solder-type termination easily and securely connects to RG-58 or RG-59 coaxial cable.
- Suitable for a variety of CCTV applications, such as video surveillance systems and security camera installations.
- Molded plastic housing provides durability and ensures reliable signal transmission.
- Easy installation with simple soldering
- Designed to provide excellent signal transfer and minimal signal loss.
Specifications:
- Connector Type: BNC Male Plug
- Cable Type: RG-58 or RG-59 Coaxial Cable
- Termination: Solder-Type
- Material: Molded Plastic Housing
Benefits:
- Secure and reliable connection for CCTV applications
- Easy installation, saving time and effort
- Durable construction for long-lasting performance
- Excellent signal transfer for clear and uninterrupted video surveillance
- Cost-effective solution for CCTV installations
Usage:
1. Cut the coaxial cable to the desired length, strip the outer jacket approximately 0.5 inches (12.7mm), and twist the braid and shield together.
2. Slide the BNC male plug onto the cable, ensuring the braid and shield are in contact with the plug’s base.
3. Solder the center conductor to the center pin of the plug.
4. Tighten the strain relief nut onto the cable to secure the connection.
Additional Features:
- Widely used in CCTV surveillance systems and other video transmission applications.
- Compatible with various BNC female connectors and couplers.
- Available in bulk quantities for large-scale installations.
